Proximity Series


InfiniTube™ Standard

Video/Machine Vision Microscopes

Magnification
for Video Imaging!
  • C-mount (CS-mount w/5mm optional spacer)
  • Covers 2/3-in. and Smaller Sensors
  • Internal Focusing (up to 50% more than FM-Series)
  • Adapts to Most Major-brand Infinity-corrected Objectives Including Achrovid™, Mitutoyo and Nikon
  • Available in Dual-port and 90-degree Versions
  • Optional Large Coaxial Illuminator w/Matched Collectors
  • Full Line of Accessories to Expand Capabilities
InfiniTube Standard
InfiniTube-Standard.pdf Size: 1.22 MB Updated: 9/18/2014
  • Optical Data
  • Magnification Tables
  • Instruction Manual
InfiniTube-Standard.pdf Size: 225.81 KB Updated: 12/19/2017
  • Pricelist
The PDF icon(s) above are linked to the OEM/Handbook, which is a compilation of detailed technical drawings, specification charts and instructions for each Infinity product. These same PDF files are also conveniently located under one directory:  PDFs To view, print and save a PDF document, you must have Adobe Acrobat Reader version 9.0 or higher installed.

InfiniTube Standard

InfiniTube Standard
InfiniTube Standard

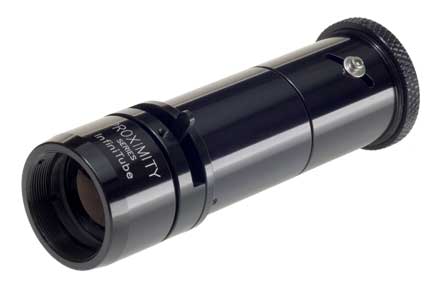

The InfiniTube Standard is a 200mm optic that, combined with infinity-corrected microscope objectives, provides superb image quality at high magnifications. The latest model has Internal Focusing Capability and Video Port Camera lock. The InfiniTube Standard is color-corrected for use with infinity-corrected objectives obtainable from Infinity Photo-Optical Company (IF-Series, LWD-Series and Achrovid) as well as those offered by Mitutoyo, Olympus and Nikon. In particular, the InfiniTube Standard couples to our Coaxial Illuminator, providing self-condensed illumination of highly reflective, flat objects. And, if that were not enough, all InfiniTube Standard optics can be optionally ordered with motor focus!  The InfiniTube Standard is a cost-effective way to solve high-magnification imaging problems.

InfiniTube Standard with Iris Diaphragm


                InfiniTube Standard with Iris Diaphragm

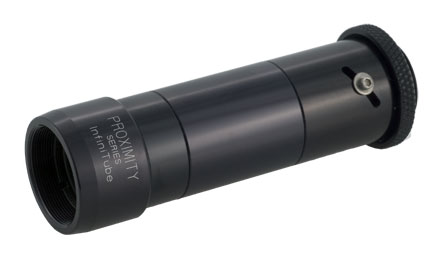

InfiniTube Standard
with Iris Diaphragm

All InfiniTube Standard-series optics (with the exception of the DP model) are supplied with a 12mm spacer which can be exchanged (or originally ordered) with a variable Iris Diaphragm to alter and control /depth of field and/or light throughput when IF-series Objectives (only) are used.

InfiniTube-Z

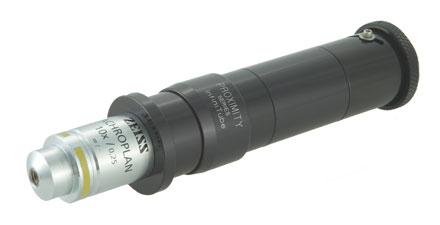

InfiniTube-Z with Zeiss objective
and RMS adapter

Finally, users of Zeiss ICS-corrected objectives can now mate them to an InfiniTube system. InfiniTube-Z is identical in size and general construction to the Standard model, but has color-compatible correction for use exclusively with Zeiss ICS objectives.

InfiniTube Standard RA (Right Angle)

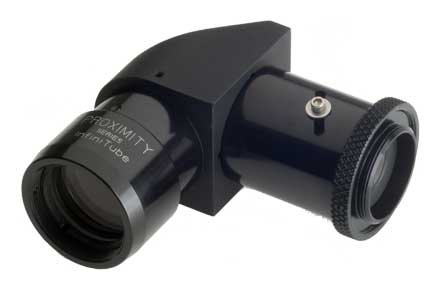

InfiniTube RA

InfiniTube Standard RA offers all the capabilities of the regular InfiniTube Standard—but allows the camera—or the entire InfiniTube assembly to be mounted 90-degrees from the regular InfiniTube's provided position.

Furthermore, an additional RA adapter can be put in the infinity beam so that a zigzag may be made at various extended lengths.  Truly, the InfiniTube Standard RA offers incredible high-power machine vision capabilities.

InfiniTube Standard DP (Dual-Port)

InfiniTube Dual-Port

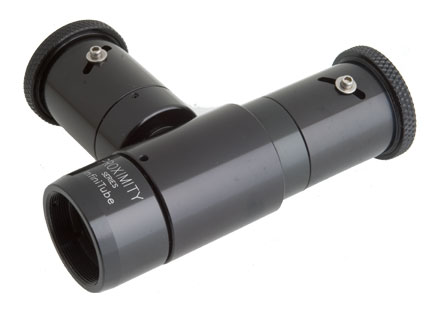

InfiniTube Dual-Port

InfiniTube Standard DP offers all the capabilities of the regular InfiniTube Standard—but splits the image to two C-mount cameras. Each port features independent Internal Focus Capability.

InfiniTube Standard

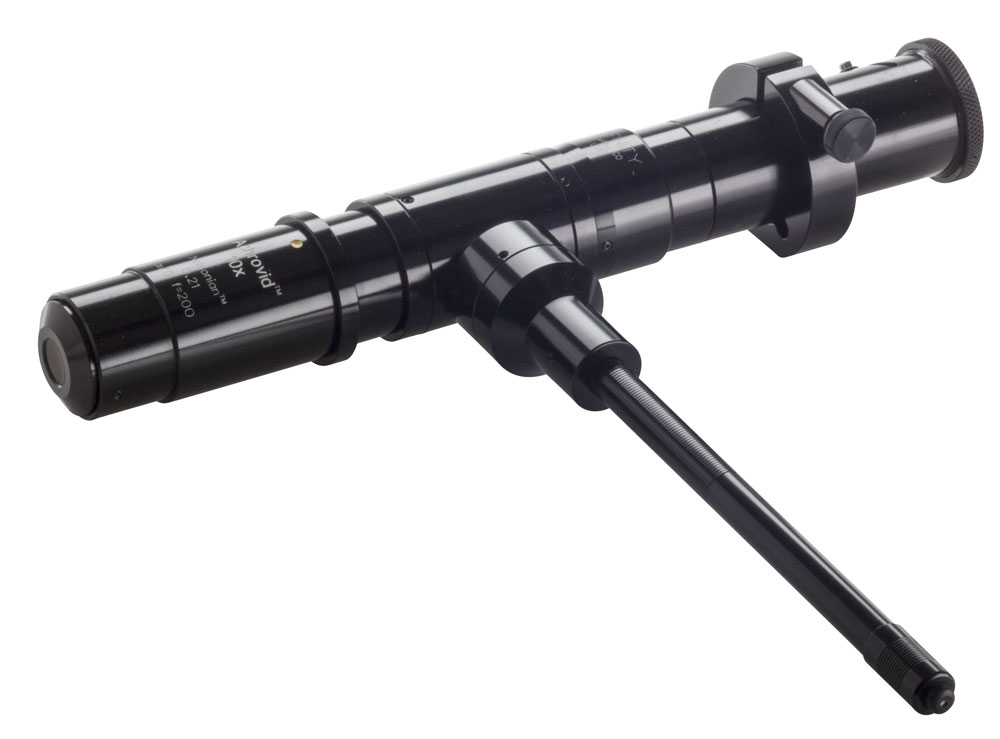

InfiniTube™ Standard equipped with Achrovid™ Objective and Coaxial Illuminator with LED Light
