Proximity Series


InfiniStix™

Video/Machine Vision Lenses

The Simple Solution!

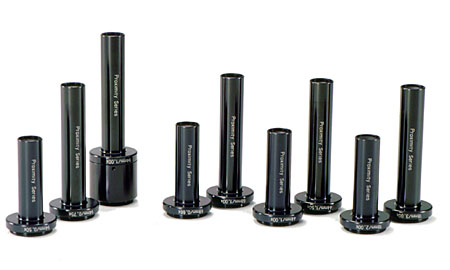

InfiniStix
InfiniStix
  • C-mount (CS-mount w/Optional 5mm Spacer)
  • 19 Magnification Choices
  • Four Working Distances
  • Primary Magnifications From 0.5x to 8.0x
  • Optional DL Doubler Multiplies All Magnifications by 2x
  • Ultra-compact/Low Weight
InfiniStix
InfiniStix.pdf Size: 356.14 KB Updated: 8/9/2012
  • Optical Data
  • Magnification Tables
  • Instruction Manual
InfiniStix.pdf Size: 133.54 KB Updated: 12/19/2017
  • Pricelist
The PDF icon(s) above are linked to the OEM/Handbook, which is a compilation of detailed technical drawings, specification charts and instructions for each Infinity product. These same PDF files are also conveniently located under one directory:  PDFs To view, print and save a PDF document, you must have Adobe Acrobat Reader version 9.0 or higher installed.

With imagery second only to Infinity's FM-50 and FM-75 of the InfiniTube Series, InfiniStix are the smallest Proximity Series application-specific video lenses. Nevertheless, they are capable of stunning imagery in their own right. The total selection of InfiniStix continues to expand as more and more applications are found. Each provides extraordinary image quality at a fixed magnification and field-of-view.

Simply choose the appropriate InfiniStix lens in steps ranging from 0.5x up to 6x, position it at the specified working distance (from 18mm, 44mm, 68mm or 94mm)—and you will automatically obtain the specified magnification and field-of-view. There's no guesswork or fumbling with extension tubes, etc. All InfiniStix can be further amplified by 2x with an optional DL Doubler Tube. In addition, 21mm fiber optic ring lights can be attached with a simple step-up adapter. Compatible with all C-mount and CS-mount video cameras, InfiniStix are only 15mm in diameter.


InfiniStix is one of Infinity's three compact micro lens offerings:

You are now looking at InfiniStix

InfiniStix and Proximity are trademarks of Infinity Photo-Optical Company.
