Proximity Series


InfiniMini™

Variable Magnification Lenses

Versatile Machine Vision Lens Systems.

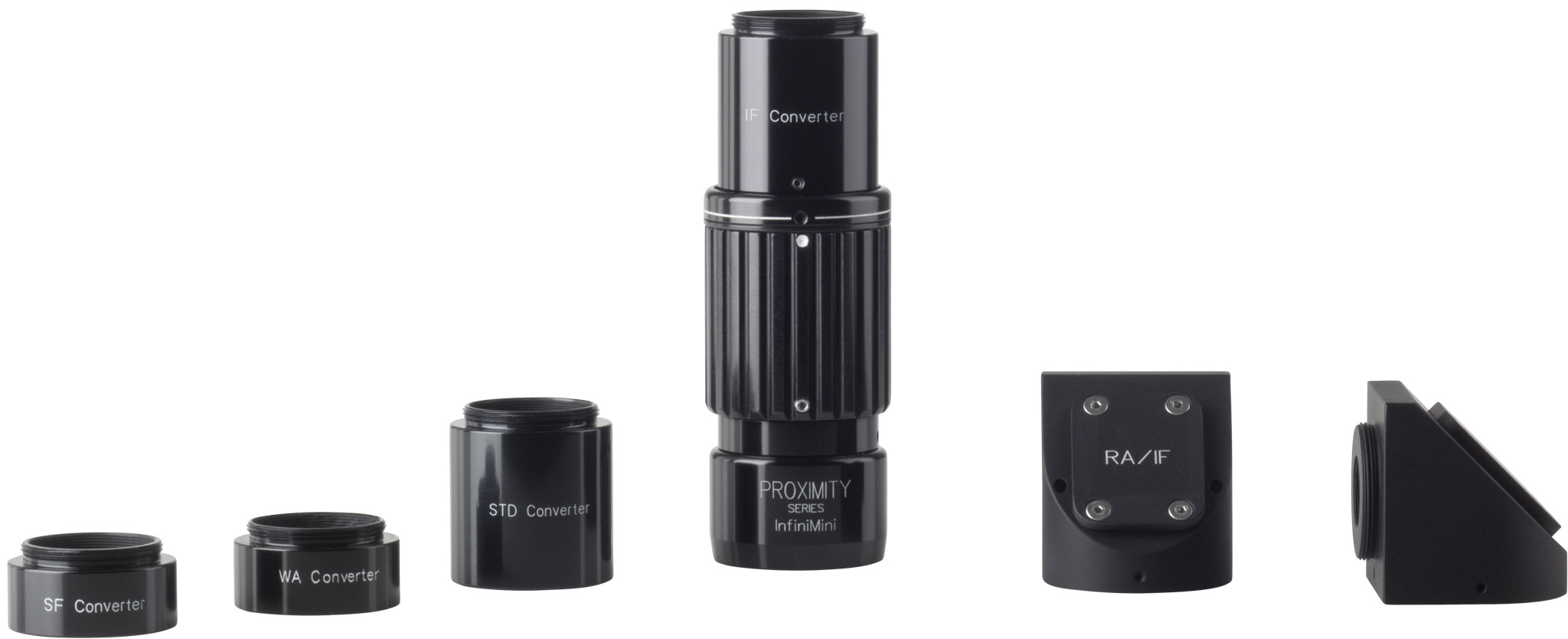

InfiniMini shown with all Converters
InfiniMini shown with all Converters
InfiniMini
InfiniMini.pdf Size: 493.86 KB Updated: 4/5/2010
  • Optical Data
  • Magnification Tables
  • Instruction Manual
InfiniMini.pdf Size: 143.86 KB Updated: 12/19/2017
  • Pricelist
The PDF icon(s) above are linked to the OEM/Handbook, which is a compilation of detailed technical drawings, specification charts and instructions for each Infinity product. These same PDF files are also conveniently located under one directory:  PDFs To view, print and save a PDF document, you must have Adobe Acrobat Reader version 9.0 or higher installed.

InfiniMini

InfiniMini

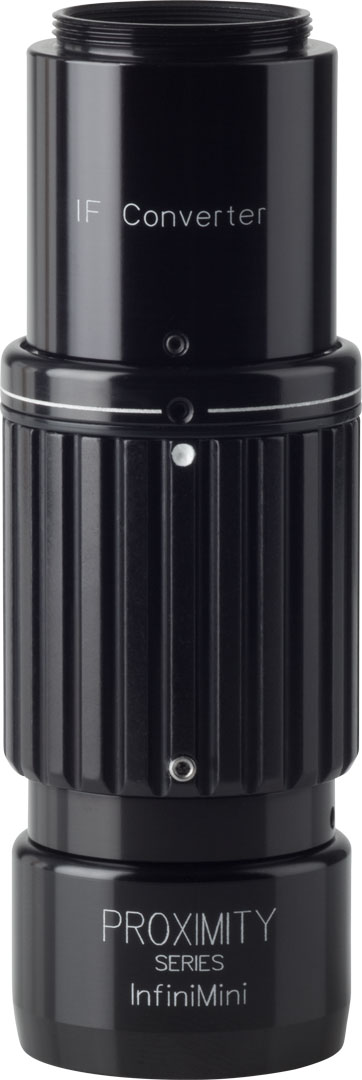

InfiniMini Straight Type

Revolutionary, internal-focusing video/machine vision lenses that offer a choice of four rear converter systems. When equipped with the Standard Converter, InfiniMini focuses directly from 750mm down to 150mm (30 in. to 6 in.) at 0.07x to 0.38x. With the IF Converter, InfiniMini focuses directly from infinity down to 314mm. Equipped with the SF Converter, InfiniMini can be utilized with video cameras having sensors 1/3 in. and smaller. The WA Converter is the same size as the SF Converter and operates from 550mm to 150mm and provides wide fields, particularly with 1/3-in., and smaller formats. Regardless of the converter used, InfiniMini progressively corrects its optical performance during focus. In fact, InfiniMini actually transitions between being a telescope and a microscope!

Input from machine vision specialists was taken into consideration during the design and development of InfiniMini, resulting in a truly innovative video lens with many unique features. Incorporating a patented Dynamic (internal) Focusing System (DFS™), InfiniMini always remains dimensionally-stable. InfiniMini's DFS system provides continuous spherical correction with progressive proximity to the subject. This means that InfiniMini improves its image quality where other lenses suffer aberrational defects. As InfiniMini is focused from anywhere within its focusing range, blurring is equal on both sides of a sharp focus-regardless of the selected working distance.


Summing up...

InfiniMini

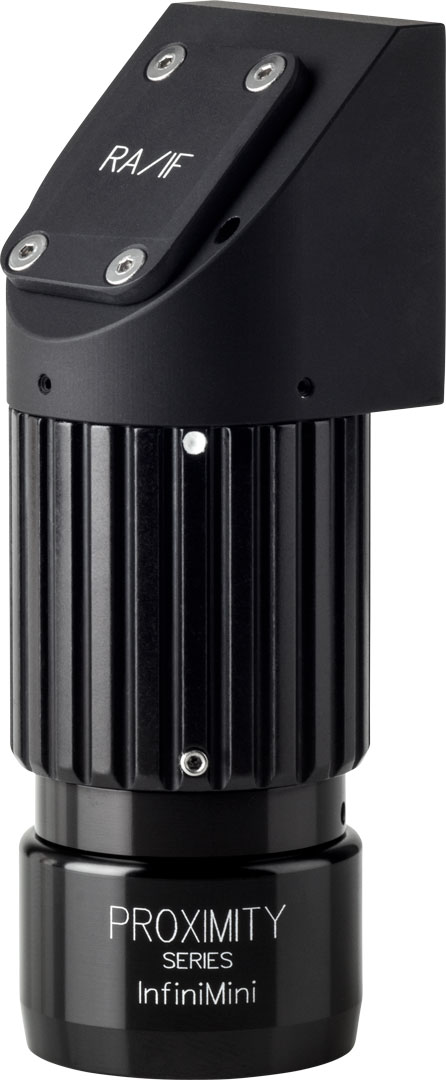

InfiniMini Right Angle (RA) Type

System integrators want a cost-effective solution that is fool-proof, simple, yet versatile—the InfiniMini is that. Lenses from other manufacturers would require constant removal, disassembly and accessorization in order to even approach the InfiniMini's capabilities. Video/machine vision systems integrators now have the features, versatility and options they've been asking for without complexity at extremely attractive prices.


DFS, InfiniMini and Proximity are trademarks of Infinity Photo-Optical Company.
