InfiniMite™
Variable Magnification Lenses
The Smart Lens™
Available in
three different versions:
InfiniMite
InfiniMite.pdf
Size: 780.94 KB
Updated: 4/17/2014
- Optical Data
- Magnification Tables
- Instruction Manual
PDF DOWNLOAD INFO
The PDF icon(s) above are linked to the
OEM/Handbook, which is a compilation of detailed technical drawings,
specification charts and instructions for each Infinity product.
These same PDF files are also conveniently located under one directory:
PDFs
To view, print and save a PDF document, you must have Adobe Acrobat Reader
version 9.0 or higher installed.
Capable of direct focus from infinity to 30mm, the InfiniMite optics are new additions
to the PROXIMITY Series of application-specific anastigmatic video/machine vision lenses. Input
from machine vision specialists was taken into consideration during the design and
development of InfiniMite optics, resulting in truly innovative C/CS-mount video
lenses with many unique features. Incorporating a patented
Dynamic (internal) Focusing System
( DFS ),
the InfiniMite optics always remain dimensionally stable. The InfiniMite
DFS
system provides continuous spherical correction with progressive proximity
to the subject. This means that each InfiniMite improves its image quality
where other lenses suffer aberrational defects. Once focused, each can be locked
by a built-in locking device.
Each InfiniMite in it's own right is called The Smart Lens. This is because,
at specific working distances each "finds" specific, repeatable magnifications—which
can even be doubled to be specific, repeatable magnifications. They're
the Smart Lenses for Smart Cameras!

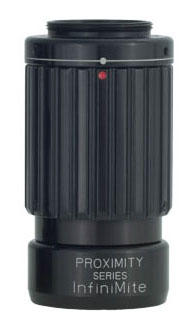

InfiniMite Alpha
was specifically designed to provide an optimum operating range and set of magnification
options for 1/3-in. sensors commonly incorporated in smart-sensored video cameras.
At specific points, InfiniMite "knows" it attains 0.25x, 0.50x and 0.75x. By adding
a 2x Power Module Amplifier (DL or LDL Tube), InfiniMite can be used at 0.50x, 1x
and 1.50x—without altering the original working distance. InfiniMite Alpha is also
suited for sensors up to 1/2-in.

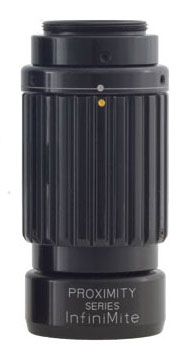

InfiniMite Beta
—aside from being 7mm longer, is identical to the Alpha and produces a similar magnification
range—but with approximately 50% greater working distance at any given time. InfiniMite
Beta is suited primarily for 1/2-in. sensors. Please refer to the magnification
charts in the OEM Handbook (under Magnification Tables & Instruction Manual
below) for specific details.

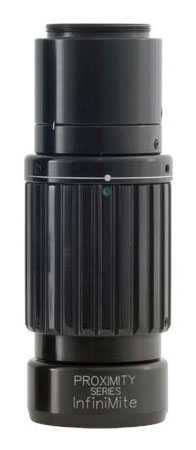

InfiniMite Gamma
is primarily used with larger-sensored cameras. The longest working distance
in the InfiniMite series. The InfiniMite Gamma
is 20mm longer than the InfiniMite Beta and 27mm longer than the InfiniMite Alpha.
