Proximity Series


InfiniGage™

Variable Magnification Lenses

The Gaging Lens™

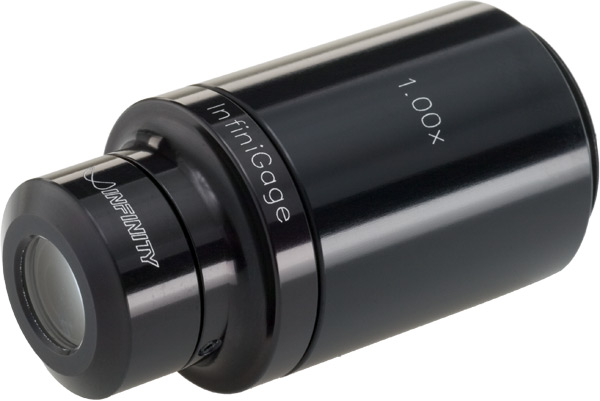

InfiniGage 1.00x

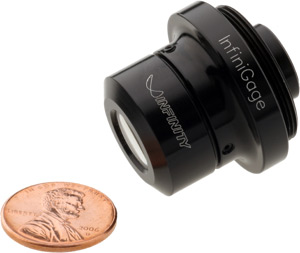

InfiniGage Main Body with 1.00x Precision Spacer
  • C-mount (CS-mount w/optional 5mm spacer)
  • Distortion-free
  • Stable Magnification for Accurate Measurements
  • Focus Adjustment for up to SEVEN Precise FOV's
  • Available in Visible, UV and Close-working (CW) Versions
  • Low Cost/High Quality
InfiniGage
InfiniGage.pdf Size: 760.59 KB Updated: 11/20/2018
  • Optical Data
  • Magnification Tables
  • Instruction Manual
InfiniGage.pdf Size: 221.60 KB Updated: 12/19/2017
  • Pricelist
The PDF icon(s) above are linked to the OEM/Handbook, which is a compilation of detailed technical drawings, specification charts and instructions for each Infinity product. These same PDF files are also conveniently located under one directory:  PDFs To view, print and save a PDF document, you must have Adobe Acrobat Reader version 9.0 or higher installed.

InfiniGage Visible and UV

InfiniGage
Seven InfiniGage Combinations

The lens that is as precise as YOU want it to be! All the work has been done for you: forget about "formulas" or "experiments." Forget about having to choose from hundreds of possible lenses—all with different characteristics. Forget about never being sure of your setup. InfiniGage is the SINGLE lens that let's you get accurate gaging results—SIMPLY—with sensor formats up to 2/3-in. A close-working (CW model) for 1/2 in. sensors is also available.

The InfiniGage Main Lens Body mates with seven Precision Spacers for SEVEN magnification / working distance choices. The bottom section separates by rotation to set the focus. By matching a ruling placed underneath exact magnifications can be obtained. You can set InfiniGage PRECISELY to each magnification, lock that in place—and be ready to make accurate measurements. Or, simply get stunning images on your machine vision setup.

InfiniGage 1.00x
InfiniGage Main Body

InfiniGage is also available in a UV version. All the gaging features of the Visible InfiniGage have been incorporated in the UV version.

You can even put 11.8mm to 12.5mm diameter filters INSIDE the Visible InfiniGage for polarization or color analysis without changing outer dimensions (once selected). All filters can then be locked in place with an accessory retainer. Each InfiniGage can be doubled in magnification by simply adding a DL Doubler Tube and, if you wish, secured by the Small Mounting Clamp.

Now, there is another InfiniGage—the InfiniGage CW. InfiniGage CW is just like its stablemates, but works at closer working distances. It can be used with all formats up to and including 1/2-in. sensors.

InfiniGage and Proximity are trademarks of Infinity Photo-Optical Company.
