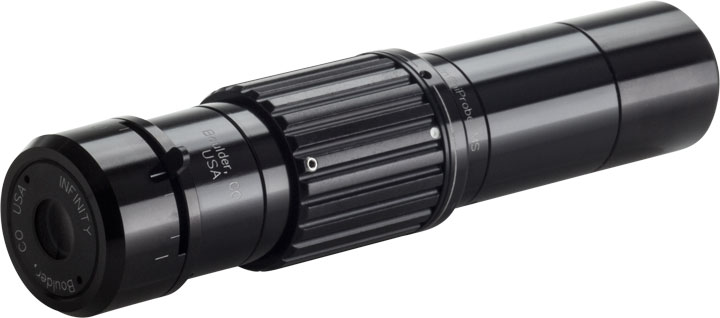

InfiniProbe™ MS

Variable Magnification Lens

The Resolution and Macro Capabilities of the
InfiniProbe TS-160 in a Compact C-Mount Configuration
  • 0-4x Focusing from Infinity to 16mm
  • Covers All Sensors to 1-in. Format
  • High Resolution/Extremely Low Distortion
InfiniProbe
InfiniProbe-MS.pdf Size: 239.42 KB Updated: 6/5/2014
  • Optical Data
  • Magnification Tables
  • Instruction Manual
InfiniProbe-MS.pdf Size: 229.97 KB Updated: 12/15/2017
  • Pricelist
The PDF icon(s) above are linked to the OEM/Handbook, which is a compilation of detailed technical drawings, specification charts and instructions for each Infinity product. These same PDF files are also conveniently located under one directory:  PDFs To view, print and save a PDF document, you must have Adobe Acrobat Reader version 9.0 or higher installed.

When it comes to machine vision, industrial, biological/entomological or general imaging requirements for a Variable Magnification Lens, imagine the convenience of harnessing the MACRO capabilities of the incredible InfiniProbe TS-160 transferred to a single, unitized C-mount version. Imagine focusing from infinity down to 16 millmeters—going from 0 up to 4x (onto the sensor)—all in a unit that fits every C (or CS-mount with an additional 5mm spacer) camera. That sums up what the InfiniProbe MS (Macro System) is. A Variable Magnification Lens like no other. But it is more: It completely covers 1-in. Sensor Formats as well.

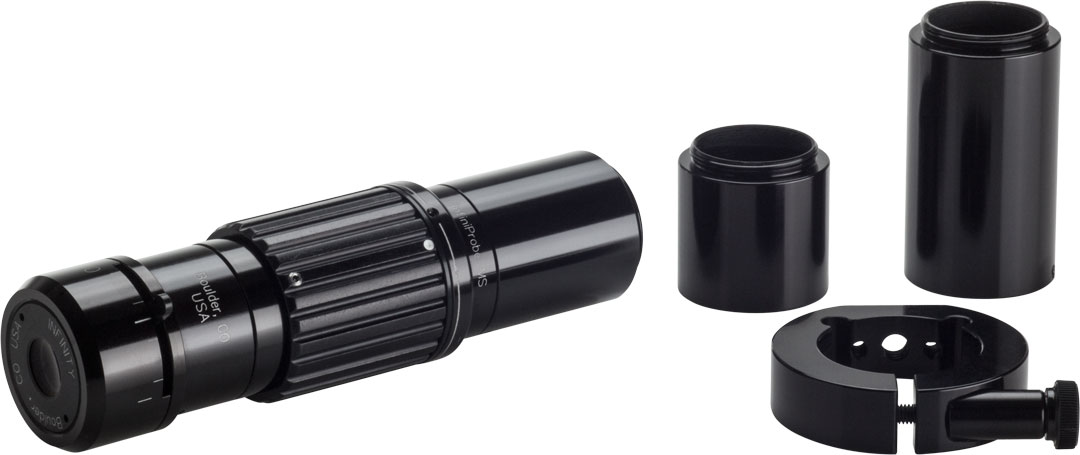

InfiniProbe MS System

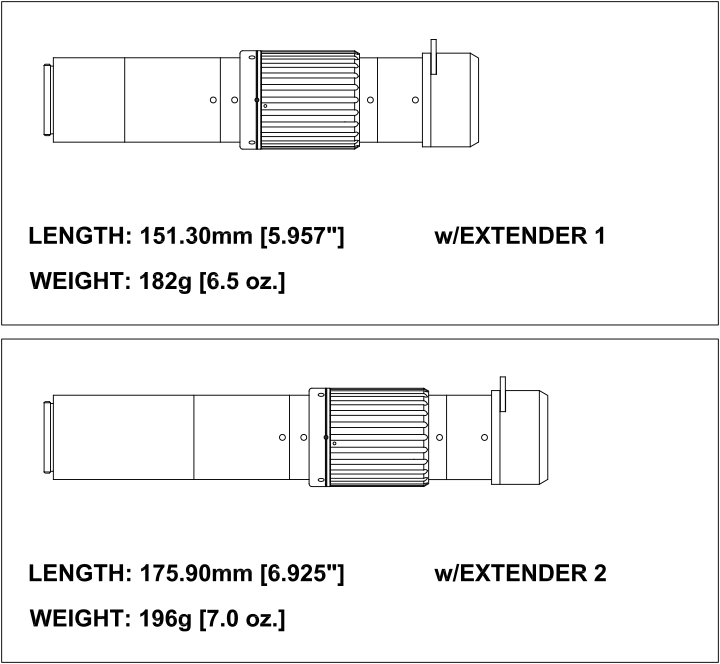

The InfiniProbe MS comes with two extenders. A mounting clamp is optional.



Given what the InfiniProbe MS does, no other Macro Variable Magnification Lens even approaches it. You can custom-tailor your vision requirements by using a single lens system. No formulas, no downtime. Just look at what you want to do in the MS's PDF tables—and find your answer.

The quality of the imagery that the InfiniProbe MS is capable of is that of the definitive InfiniProbe TS-160 (see some examples here). The InfiniProbe MS is virtually the same optical configuration in a C-mount "package."

Once you have set up the InfiniProbe MS, its outer dimensions remain constant. That even holds true if you want to add filters. Every InfiniProbe MS has a built-in filter holder. An iris diaphragm allows variable control.

InfiniProbe MS—the InfiniProbe TS-160 MACRO capabilities in C-mount. As simple as that.

InfiniProbe, and Proximity are trademarks of Infinity Photo-Optical Company.
